Technical Specification for DIY Vehicle Soundproofing Materials

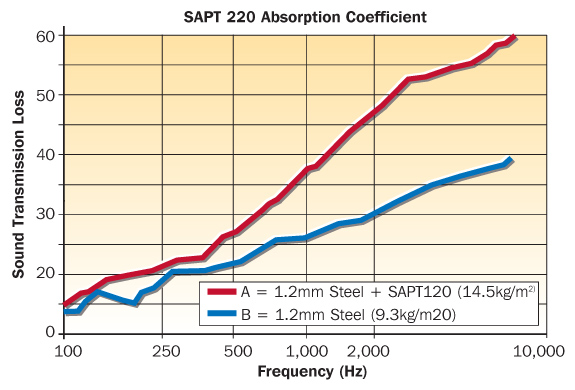

The following information shows technical performance for the main acoustic sound absorbing foam products in this kit. The product was tested with engine noise and the graph below outlines the results.
The graph shows the improvement in sound loss when the thinner SAPT120 is applied to 1.2mm steel.
General Physical Data |
|
SAPT220 |
|
Skin: |
Black |
Foam: |
Grey |
Supply Form: |
Available in rolls |
Sheet Size: |
nom. 3m x 1.25m (10ft x 4ft) |
Nominal Thickness: |
13mm +/- 1mm |
Density |
|
Foam: |
27-30kg/m3 |
Barrier: |
5kg/m2 |
Film Face: |
PVC |
Flammability |
|
FMVSS 302 |
Self-Extinguishing BS4735 Self-Extinguishing |
SA12FRSA |
|
Foam: |
Black |
Supply Form: |
Available in sheets |
Sheet Size: |
nom. 1.5m x 1m (5ft 6inches x 3ft 3inches) |
Nominal Thickness: |
12mm +/- 1mm |
Density |
|
Foam: |
75-90/m3 |
Flammability |
|
FMVSS 302 |
Self-extinguishing |
BS 476 Part 6 and 7 |
Class 0 Class 1 |
