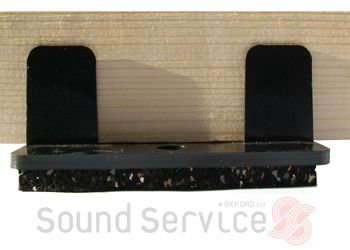

Cradle2 main1 Acoustic Cradle System for use with battens

Product Details

Size
97mm x 97mm x 53.5mm

Technical Specs

Product PDF

Prices





Acoustic cradle system to level uneven floors and decouple floors to reduce impact and airborne noise stocked and supplied by             Sound Service

OVERVIEW

The Acoustic Cradle system is to enable floating floors to be fitted and allowing for services to be run beneath.  The Acoustic Cradle system is ideal for levelling uneven floors with the application of various thickness of spacers along with retaining its full soundproofing potential.

Key Benefits

  • Robust Detail compliant to E-FC-1 or E-FS-1
  • PART E compliant
  • Easy installation
  • Use on uneven floors
  • Allows easy installation of services beneath the floor

DESCRIPTION

This Acoustic Cradle system is designed to comply with Robust Detail E-FC-1 or E-FS-1 as well as being Part E compliant and can be used on both concrete or timber suspended floors when building or converting to a separating floor.

The cradles are produced with a 10mm resilient pad that decouples the floating floor and also absorbs impact noise and is designed to accept and securely hold timber floor battens.  Different thickness packers for use beneath the battens inside the cradle can also be used to create a perfectly level floor if being installed on an uneven base floor.

Sound transmission standards of ADE 2003 (amended 2004) are met with the correct installation of this system.

APPLICATIONSpacker small1 Acoustic Cradle System for use with battens

To be used over level or uneven concrete floors for conversions, refurbishments, change of use or new build.





PERFORMANCE

(As shown in the two construction illustrations below)

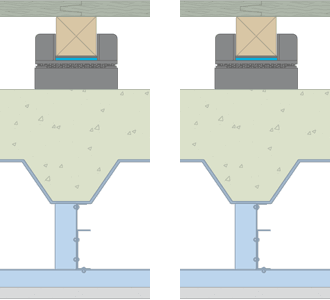

Floating floor meets the descriptive FFT2, within        Robust Details E-FC-1 or E-FS-1.

ABOVE:  Showing Acoustic Cradle with Plastic floor levelling spacer.

cradle1 Acoustic Cradle System for use with battens

18mm tongue and grooved chipboard floor

Acoustic Cradle with 45mm x 45mm batten fitted

Elevating Block

130mm max. concrete base.  80mm minimum thickness fully supported on profiled steel deck







Gyproc MF type suspended ceiling with 75mm void and 10kg/m² plasterboard




cradle21 Acoustic Cradle System for use with battens

18mm tongue and groove chipboard floor

Acoustic Cradle with 45mm x 45mm batten fitted





200mm thick hollow core concrete plank min. 300kg/m² without screed





Gyproc MF type suspended ceiling with 75mm void and 10kg/m² plasterboard plasterboard
