soundproofing:

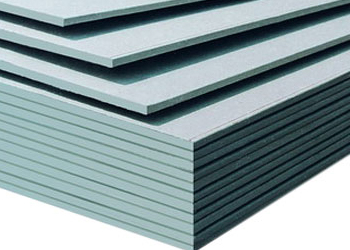

Acoustic Plasterboard


overview
Our Acoustic Plasterboard is high in mass and this helps
absorb sound energy, giving enhanced acoustic performance to the wall
& ceiling.
testimonial
size
See chart below


Our Acoustic Plasterboard is high in mass and this helps
absorb sound energy, giving enhanced acoustic performance to the wall
& ceiling.
PLEASE NOTE THAT THIS PRODUCT ON IT'S OWN IS NOT ENOUGH TO SOUNDPROOF A WALL OR CEILING. IT NEEDS TO BE USED WITH EITHER OUR RESILIENT BAR OR M-20 SYSTEM.
Acoustic Plasterboard is designed for use in areas where sound reduction is of particular importance. Its high mass helps block and absorb sound energy, giving enhanced acoustic performance to the wall or ceiling. It complies fully with BS EN520 and is categorised as Types A, D.
Acoustic Plasterboard has a Thermal Conductivity figure of k = 0.24W/mK
Thermal Resistance:
12.5mm = 0.05m2 K/W
15.0mm = 0.06m2 K/W
APPLICATIONS - Our high density Acoustic Plasterboard is particularly effective when applied to the underside of timber joisted ceilings, lightweight partition systems and when bonded to our M20AD soundproofing for walls.
Performance Information when used with "C" Stud Partitions
|
Number
of 12.5mm thick Layers
|
Stud
Size & Gauge (mm)
|
Using Sound
Service AMW & Acoustic Plasterboard and measured in dB (RW)
|
|
1
|
50 (0.55)
|
43
|
|
2
|
51
|
|
|
1
|
70 (0.55)
|
45
|
|
2
|
54
|
|
|
1
|
146 (0.55)
|
47
|
|
2
|
56
|
Sheet Size Guide
| Dimensions (mm) | ||
| Thickness | Width | Length |
| 12.5 | 1200 | 2400 |
| 15 | 1200 | 2400 |
| 19 | 600 | 2400 |
PLEASE CHECK WITH OUR SALES TEAM TO MAKE SURE THIS PRODUCT IS AVAILABLE IN YOUR AREA BEFORE ORDERING.
All orders of less than £587.50 will be subject to carriage and packing charges.
