product details

size
1200 x 1000 x 15mm (4ft x 4ft)

PRICES technical specs installation guidedownload acrobat

key benefits

soundproofing: Quietfloor PLUS
Quietfloor PLUS
Quietfloor Underlay Quietfloor PLUS

soundproofing: Quietfloor PLUS

overview

Our superb and improved acoustic floor system designed to improve both the impact and airborne noise transfer through floors.

testimonial

"We were recommended Quietfloor PLUS and it is just superb. No more noise and at last we have peace at night. Thank you guys !! "

Jill Hyde, Blackpool

description.

Perhaps one of the quickest and most effective acoustic solutions on the market, Quietfloor PLUS is also remarkably cost-effective. Using this product increases airborne sound insulation and reduces impact noise transmission so much that there is no need for the installation of false floors; this not only increases minimum ceiling height but it also reduces labour and materials costs considerably.

The laminated composition provides maximum performance for minimum thickness and combines excellent sound insulation with all the qualities of a good carpet underlay. It is quick and easy to install and is easily cut and shaped.

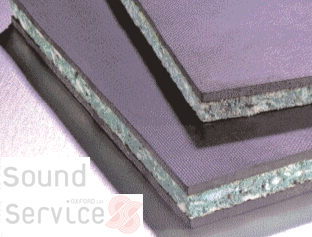

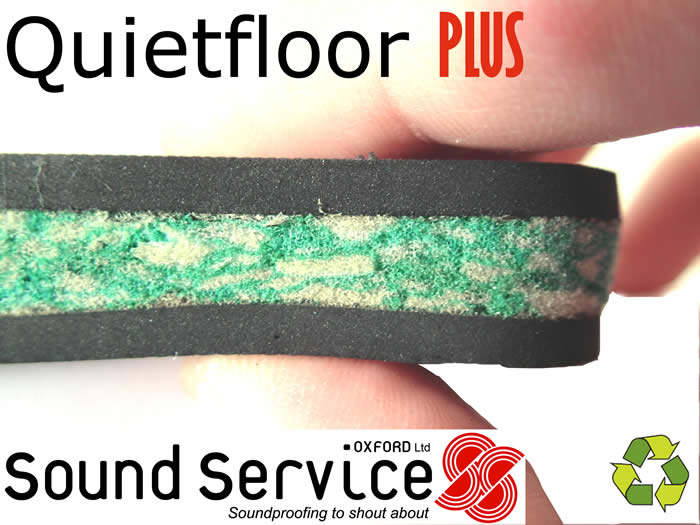

This product comprises a recycled layer of sound absorbing chip foam bonded to a top and bottom layer of mineral loaded soundproofing mat. The base layer of barrier mat seals and damps the sound coming through the floor, the isolated top layer of barrier mat reduces the sound penetration both ways and the sound absorbing chip foam core dramatically absorbs and reduces impact noise transfer.

In addition, Quietfloor PLUS is made from an acoustic foam, which does not harden or crumble over time, unlike some other foams that are normally used in these applications.

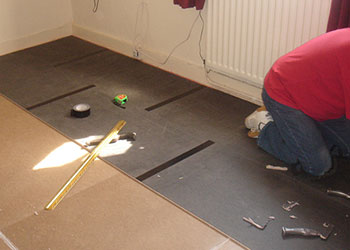

QuietFloor PLUS is ideally glued down using our special spray adhesive. We would advise taping over the seams with our PVC Tape

When laying the Quietfloor PLUS you should use our perimeter strips between the wall and each panel. These are 1000 x 30 x 9mm thick strips.

Acoustic Performance

Sound Service (Oxford) Acoustic Performance
Quietfloor PLUS

AIRBORNE SOUND INSULATION OF TIMBER FLOORS
Building regs minimum requirement is 43dB


Up to 51 dB

IMPACT SOUND INSULATION OF TIMBER FLOORS
Building regs maximum requirement is 64dB


Down to 39 dB
