size
1.2m x 1.2m x 2.75xcm (27.5mm) Min of 5 panels per order.

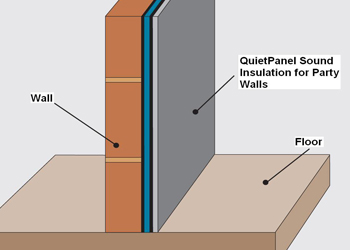

The QuietPanel Thin Wall Soundproofing System has been developed to upgrade existing walls with very limited space to reduce sound transmission and noise from neighbours. It can be applied to either masonry or stud walls and is also suitable to reduce flanking noise up and down walls.
The QuietPanel Thin Wall Soundproofing System has been developed to upgrade existing walls with very limited space to reduce sound transmission and noise from neighbours. It can be applied to either masonry or stud walls and is also suitable to reduce flanking noise up and down walls. It is also a proved solution to upgrade walls that have failed a pre-completion test. Meets Part E of the Building Regulations. Extra slim composition means little compromise on living space with high performance. The QuietPanel Acoustic Wall System is easy to install and available for fast delivery nationwide. For shipping reasons there is a min order of 5 panels per delivery.

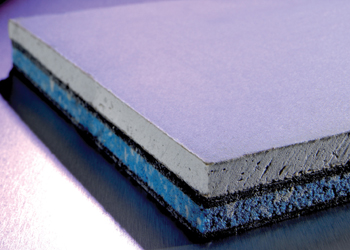

Composition 15mm noise stopping layer laminated to 12.5mm non-flammable, high density sound blocking acoustic panel.
Board Size: 1.2m x 1.2m
Thickness: 2.75cm
Weight: 24.7kg each
Part E Requirement: 43dB
QuietPanel Performance: 44dB
Please see our Installation page above for a guide on how to install this system yourself. For expert fitting, we may be able to offer an installation service in some parts of the UK so contact us to see if we have fitters that work in your area. The installation will be performed to the highest standards by skilled and experienced tradesmen. These experts understand the importance of fitting acoustic materials absolutely perfectly and they have the specialist skills to ensure that all soundproofing materials are fitted correctly every time. As they are both experienced and skilled, they are also able to provide a highly efficient and cost-effective service.
Acoustic Sealant must be used around the perimeter to ensure compliance.
Please note: This sound insulation is effective at reducing normal noise levels that should not normally be heard, for example talking, radio and TV sound. Loud music, loud noise and bass noise will always be audible although its intensity will be reduced. To reduce loud noise and bass or vibration please see our thicker Resilient Bar system
We do not accept any responsibility for the structural weight acceptance of any building and whether it can withstand the weight of any products or combination of products. If you are concerned we feel you may benefit from the advice of a professional at your own cost. Refunds will not be given under these circumstances.
PLEASE BE AWARE THESE PANELS WEIGH 24.7KG EACH SO YOU MAY REQUIRE HELP LIFTING.
