Single Stud Wall with SoundBlocker Quilt

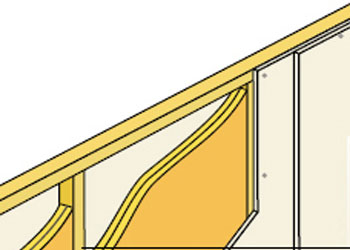

2110 Single Stud System using SoundBlocker Quilt Plus

Product Details

Size
Supplied on a roll, 6m x 600mm or 6m x 1200mm

PRICES



Details of single soundproofed stud walls for bedrooms using soundblocker quilt for the acoustic infill stocked and supplied by Sound Service (Oxford) Ltd.

OVERVIEW

Comply with  Part E  for single stud walls separating bedrooms with high density acoustic plasterboard and SoundBlocker Quilt acoustic cavity fill.

 Benefits

  • Only 130mm overall width
  • 52mm thick
  • High acoustic performance
  • Lightweight at 5.6Kg/m²
.
SoundBlocker Quilt SBQ2 Sound Reduction Performance
RwdB RwdB + Ctr
55 48
Part E Acoustic Requirement
New Build Refurbishment
DnT,w + Ctr dB DnT,w + Ctr dB
45 43

Components and Fixing Data:

  • 1 sheet of 12.5mm Acoustic Plasterboard (screwed to frame)
  • 1 sheet of 15mm Acoustic Plasterboard (offset and screwed through first layer to frame)
  • 75mm x 50mm timber studs at 600mm centres
  • 52mm SoundBlocker Quilt SBQ2 (cavity infill)
  • 1 sheet of 12.5mm Acoustic Plasterboard (screwed to frame)
  • 1 sheet of 15mm Acoustic Plasterboard (offset and screwed through first layer to frame)
.
Technical Data
Application: Separating Wall
Mass per Unit:  55 kg / m2
Footprint Width: 130mm
Fire Protection: 60 Minutes
Certification: Sound Reduction index to BS EN ISO 140-3: 1995. Rating according to BS EN ISO 717-1: 1997

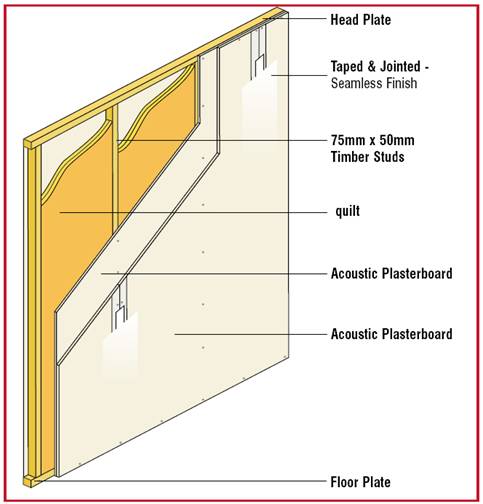

part e single stud system quilt clip image0021 Single Stud System using SoundBlocker Quilt Plus

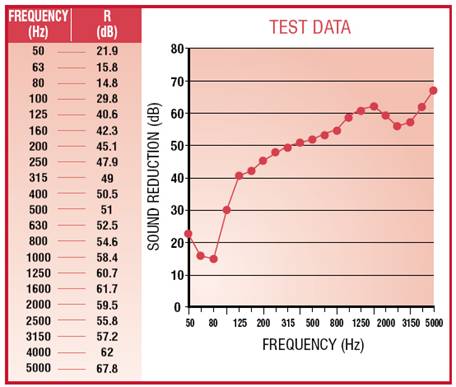

part e single stud system quilt clip image002 00001 Single Stud System using SoundBlocker Quilt Plus





























SOUNDBLOCKER QUILT MAKE-UP

Our SoundBlocker Quilt is produced using 25mm mineral wool on either side of our 5Kg/m2  SoundBlocker Membrane.  This combination gives the product enhanced sound absorbing and sound blocking performance and far better than any other normal mineral wool alternatives creating a far better, soundproofed partition wall.

Because it is up to 4 times more efficient than normal cavity infills due to its unique sound barrier layer sandwiched within the product a superior, soundproofed stud wall can be constructed.

Using this SoundBlocker Quilt system will exceed the requirements of the  Part E Resistance to the Passage of Sound document making it the sensible choice for both new build stud walls and conversion of existing walls in flats.

SoundBlocker Quilt can up rate a normal partition by up to 16dB!

Size: 5m x 0.6m or 5m x 1.2m

Coverage: 3m² or 6m²

(R Value): 1.25 m2K/W.
