STEELSORPTION Installation Guide

Download this as a PDF file  HERE

steelsorption Steelsorption Installation

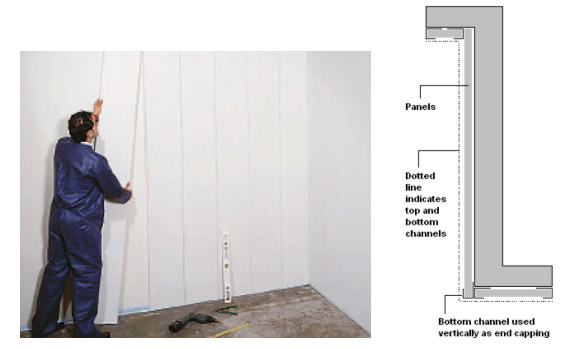

Walls:

Use a spirit level to align all horizontal and vertical surfaces.  Odd leg ‘U’ channels are plugged and screwed to the wall. Insert the panel into top channel and push panel flush to wall then lower into bottom channel. Use bottom channels vertically as capping to cut wall ends.

Ceilings:

Odd leg ‘U’ channels are plugged and screwed to the soffit. Insert the panel into
top channel and push panel flush to soffit – then slide into bottom channel. Use bottom
channels as capping to cut ends. Use pop-rivets or screws to hold panels at ends as required.

CUTTING

Perforated metal panel facing can be cut using metal snips and insulation core with a
sharp knife.

MAINTENANCE

Panels can be wiped with a clean cloth.
