Acoustic Air Vents

FrontofNewVent350x2501 Acoustic Air Vents

Product Details

Size
Sizes are dependent on ventilation required.

PRICES

Technical Specs

Product PDF





Soundproofed Acoustic Air Vents ventilation for studios, music practice rooms and garage conversions into drum practice rooms from:

Sound Service (Oxford) Ltd

OVERVIEW

These Acoustic Air Vents allow fresh air into and out of a studio, band practice room and music room at the same time as efficiently containing sound from breaking out or noise getting in.

Benefits

  • BRE Tested and complies with Approved Document F
  • Adjustable internal baffle.
  • Easy installation.
  • Blocks up to 50dB of noise.
  • Available in variety of sizes and colours.

DESCRIPTION

Getting fresh air into a studio or music room without external noise contamination or loud music disturbing others outside of the room is no longer a problem.  Simply install our Acoustic Vents with adjustable internal grilles and your noise problems are solved.  Available in a variety of sizes and colours from stock, our Acoustic Vents can easily be fitted into most walls without reducing airflow and minimising noise pollution.  They are of a plastic construction and lined with a very effective, flame resistant sound absorbing foam that absorbs noise in both directions.

The images below show our most popular vents but of course, there is a wide range to choose from and bound to be one that suits your requirements.  More details of what is available along with dB ratings can be downloaded by clicking on the Product PDF near the top of the page on the left hand side.

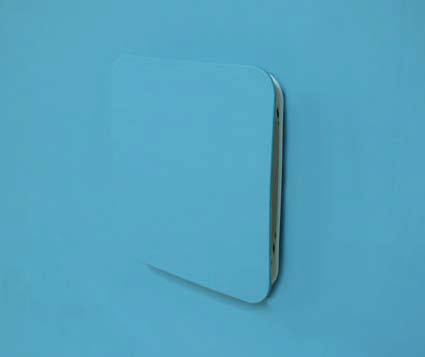

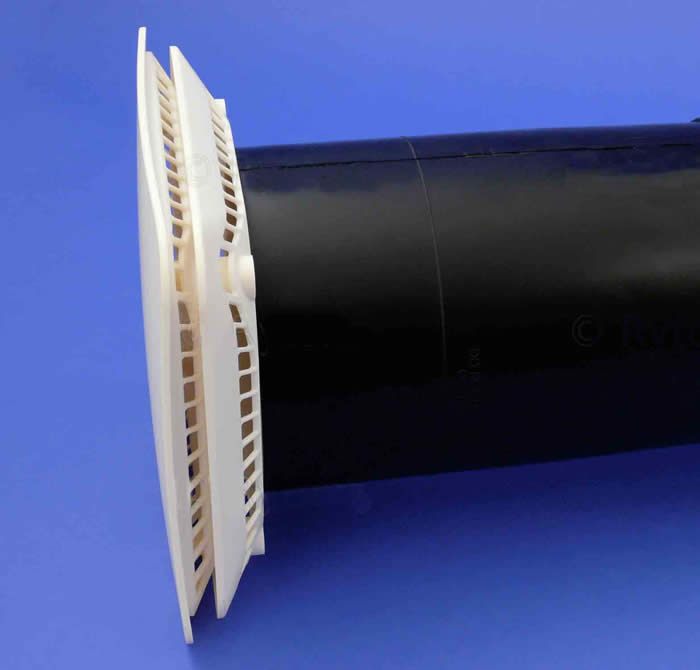

openthumbnail 0001 Acoustic Air Vents    paintedventcover1 Acoustic Air Vents

Above is our AAC125HP - Super Acoustic Controllable Air Vent  (Up to 50 dB Dn,e,w)
Sound reduction is within the range of 45 – 50dB  D n,e,w depending on the width of the wall.
Main Uses, Features and Benefits

  • Controllable internal air vent.
  • Core drilled fitting – suitable for existing walls.
  • Effective acoustic lining.
  • Internal adjustable vent can be decorated to suit wall.
  • External cowl UV resistant.
  • Tested by BRE Acoustics.

This product is supplied with all necessary fixings and has the advantage of being able to decorate to suit the wall into which it is to be fitted with either paint or paper.

More information concerning this product can be viewed by clicking on the Technical Specs link near the top of the page on the left hand side.

9x3withHitandMissVent263x188mm1 Acoustic Air Vents      9x3withCowl263x188mm1 Acoustic Air Vents

Above is our TAL4H&M- ’9×3′ Acoustic AirLiner® Set with Hit & Miss Ventilator (Up to 39dB Dn,e,w)

  • Adjustable hit and miss internal air vent.
  • Acoustically lined for maximum efficiency
  • External baffle and cowl prevent water ingress.
  • All grilles U.V. light resistant.
  • Tested by BRE Acoustics for acoustic efficiency.

More information concerning this product can be viewed by clicking on the Technical Specs link near the top of the page on the left hand side.

9x9withHitandMissVent263x188mm1 Acoustic Air Vents      9x9withCowl263x188mm1 Acoustic Air Vents

Above is our TAL9H&M 9×9″ Acoustic Vent Set with Hit & Miss Ventilator (Up to 38dB Dn,e,w)

  • Controllable hit and miss internal air vent.
  • Adjustable baffle reduces light and draughts.
  • External baffle and cowl prevent water ingress.
  • Alll grilles U.V. light resistant.
  • Tested by BRE Acoustics.

More information concerning this product can be viewed by clicking on the Technical Specs link near the top of the page on the left hand side.

An external cowl is supplied with most of these vents but please check when ordering.
