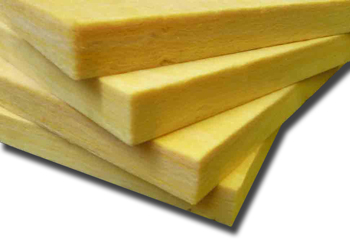

Coresorption – sound absorbing panels

coresorption main2 site1 Coresorption   sound absorbing panels



Product Details

Size:  1200 x 2700 x 25mm thick (other sizes available on request)

PRICES

Product PDF



OVERVIEW

Coresorption sound absorbing panels are used to absorb sound and improve the acoustics within rooms and studios but can be used for a variety of different applications to suit.

Key Benefits

  • Easy to install
  • Cost effective echo reduction solution
  • Class 1 & O fireproof
  • Fast delivery
  • Ideal to reduce noise usually found in community halls, schools, village halls, reception areas
  • Suitable for DIY build recording studios and mixing rooms

DESCRIPTION.

Application
They are ideal for DIY installation for people wanting to create their own recording or practice studio and even in mixing rooms as well as a wide variety of other potential uses to reduce resonance within a room.

Composition
Coresorption acoustic insulation boards are manufactured from non-flammable resin bonded glassfibre which is compressed to form unfaced 25mm thick panels.
The basic glass fibre insulation is compressed under heat and pressure from 100mm to form a 25mm thick board that will effectively absorb normal noise levels. This thinner compressed board will absorb the type of noise usually found in community halls, schools, village halls, reception areas and similar. If you are building a home recording studio this would also be a great product to help reduce reverberation. If the sound levels are greater than normal, a thicker sound insulation would be required and can be achieved by bonding two panels of Coresorption together using our Sta-Stuck aerosol contact adhesive to give 50mm. The panels are easy to cut and handle as required.

Standard nominal size: 1200 x 2700 x 25mm thick (other sizes available on request)
Approximate weight: 3 kg/m²
Natural colour: Yellow
Availability: Normally a stock item but check on availability as this is a popular and fast moving product.

Fire Resistance
The Coresorption acoustic panels meet BS 476 Part 6 & 7, Class 1 and Class 0


Thermal Conductivity

The Coresorption acoustic panels are also excellent thermal insulators having a k value = 0.037 w/m²k


Typical General Applications

Please contact our technical department for specific project applications.

Sound absorption ceiling or wall lining to reduce reverberation time

6 WALLABSORB graph Coresorption   sound absorbing panels

Sound absorption performance :-

Absorption coefficient (Hz) 125 250 500 1,000 2,000 4,000 NRC Class
With 100mm air gap 0.38 0.92 0.96 0.93 0.99 0.97 0.95 A
