FRHD Non-Flammable (High density) Acoustic Foam Technical Specification

Properties
Polymer

Colour:

Open cell PVC/Nitrile

Black

Sheet Size: 1m x 1m
Standard thickness 12 and 25mm enquire about if other thicknesses required
Piece Density: Density: 240kg/m3
Temperature Range: -30oC to +110oC
Thermal 0.043 W-m.k @ 20oC



Fire Resistance
FMVSS 302 Self-Extinguishing
BS4735 Self extinguishing
Class 0 BS 476 pt 7
ASTM D1692 max extent burnt 60mm
UL94 Pass Rating HF1 & V-0

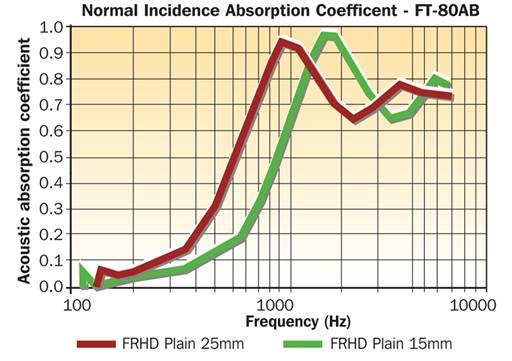

clip image002 023 FRHD Technical Data

The data contained in this specification is believed to be accurate at the time of going to press. Sound Service (oxford) Ltd reserves the right to amend product data without prior notification. Sound Service (Oxford) Ltd can assume no liability for results obtained or damages incurred through the application of the data and test presented.
